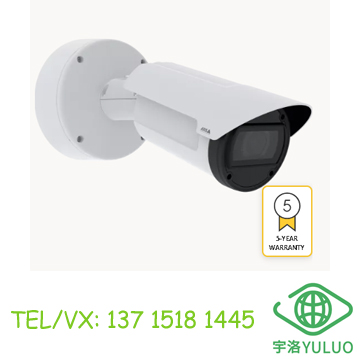

AXIS Q1809-LE Bullet Camera
All-in-one 41 MP camera for extreme detail
Built on a dual Axis system-on-chip, this all-in-one, outdoor-ready bullet camera delivers superior 41 MP resolution.
And a 4/3” image sensor ensures exceptional low-light performance. It’s available with a wide lens for open areas or a
tele lens for surveillance from a distance. Enclosed in a robust aluminum casing, it includes a mounting arm for easy
installation. Plus, a spacious back box ensures secure cable management. Axis Edge Vault, a hardware-based
cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations.
Furthermore, PoE out lets you connect and power another device without additional cabling.
> Out-of-the-box and outdoor-ready
> Superior image quality in 8K
> High light-sensitive 4/3” sensor
> Wide or tele Canon lens
> Built-in cybersecurity with Axis Edge Vault
Variants
AXIS Q1809-LE
AXIS Q1809-LE 150 mm
Image sensor
4/3” progressive scan RGB CMOS
Pixel size 2.315 µm
Lens
24 mm lens:
Varifocal, 12-24 mm, F2.0-3.0
8K
Horizontal field of view: 90°–44°
Vertical field of view: 49°–25°
41 MP
Horizontal field of view: 87°–42°
Vertical field of view: 64°–32°
Minimum focus distance: 1.5 m (4.9 ft)
Remote zoom and focus, P-Iris control
150 mm lens:
Varifocal, 50-150 mm, F4.0
8K
Horizontal field of view: 21°–7°
Vertical field of view: 12°–4°
41 MP
Horizontal field of view: 20°–6.6°
Vertical field of view: 15°–5°
Minimum focus distance: 5 m (16.4 ft)
Remote zoom and focus, P-Iris control
Operating conditions
Temperature with 30 W: -20 °C to 55 °C (4 °F to
131 °F)
Temperature with 60 W: -40 °C to 55 °C (-40 °F to
131 °F)
Maximum temperature according to NEMA TS 2 (2.2.7.3
- 2.2.7.7): 74 °C (165 °F)
Humidity: 10–100% RH (condensing)
Wind load (sustained): 60 m/s (134 mph)
Storage conditions
Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
Humidity: 5–95% RH (non-condensing)
Dimensions
For the overall product dimensions, see the dimension
drawing in this datasheet.
24 mm lens: Effective Projected Area (EPA): 0.0455 m2
(0.49 ft2)
150 mm lens: Effective Projected Area (EPA): 0.0478
m2 (0.51 ft2)
Weight
24 mm lens camera: 3.4 kg (7.50 lb)
150 mm lens camera: 3.2 kg (7.05 lb)
Box content
Camera, installation guide, terminal block connector,
RJ45 cable, connector guard, cable gaskets, owner
authentication key
Optional accessories
AXIS T8415 Wireless Installation Tool
AXIS Surveillance Cards
Power
Power over Ethernet (PoE) IEEE 802.3at Type 2 Class 4,
typical 18.9 W, max 25.5 W
Power over Ethernet (PoE) IEEE 802.3bt Type 3 Class 6,
typical 18.9 W, max 51 W
Midspan 60 W, IEEE 802.3bt Type 3 Class 6, required for
PoE out IEEE 802.3at Type 2 Class 4 (30 W) to a second
device
10–28 V DC, typical 17.6 W, max 35 W
20–24 V AC, typical 25 VA, max 33 VA
Features: power profiles, power meter
Connectors
Network: Shielded RJ45 10BASE-T/100BASE-TX/
1000BASE-T PoE, RJ45 1000BASE-T PoE output to
power an external PoE device
I/O: 4-pin 2.5 mm terminal block for 1 alarm input and
1 output
Audio: 3.5 mm mic/line in
Dimensions
For the overall product dimensions, see the dimension
drawing in this datasheet.
24 mm lens: Effective Projected Area (EPA): 0.0455 m2
(0.49 ft2)
150 mm lens: Effective Projected Area (EPA): 0.0478
m2 (0.51 ft2)
Weight
24 mm lens camera: 3.4 kg (7.50 lb)
150 mm lens camera: 3.2 kg (7.05 lb)
Power: DC input
AXIS Q1809-LE 150 mm AR, AU, BR, CN, EU, JP, KR, UK, US 03019-001
AXIS Q1809-LE 150 mm IN 03019-113
AXIS Q1809-LE AR, AU, BR, CN, EU, JP, KR, UK, US 02870-001
AXIS Q1809-LE IN 02870-113
