roduct Features & Specifications
Stainless steel material; high durability, anti-corrosion, anti-pollution and anti-extrusion.
Easy to install; customizable, simple maintenance and high safety factor.
Pinhole imaging; extendable into kilns to monitor high-temperature production processes.
Cost-saving & energy-efficient; energy-saving circulating cooling system (air circulation cooling system or air-water dual cooling system optional).
Optional Air Circulation Cooling System: applicable for ambient temperature from -50℃ to +300℃.
Optional Air-Water Dual Cooling System: applicable for ambient temperature from -50℃ to +600℃.

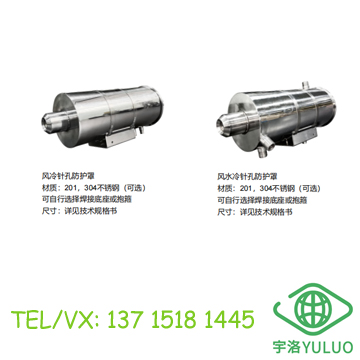

Item YLFL-ZK Air-cooled Pinhole Housing Specifications YLSL-ZK Air & Water-cooled Pinhole Housing Specifications
Max Load / Self-weight ≤20kg / 4.5kg ≤20kg / 5kg
Product Features Cooling performance close to water cooling. Suitable for environments with water shortage and risk of water pipe cracking in winter. Excellent cooling effect. Suitable for regions with abundant water resources and high working temperature.
Operating Ambient Temperature -50℃ ~ +300℃ -50℃ ~ +600℃
Ambient Dust Concentration ≤200mg/m³ (based on cement dust) ≤200mg/m³ (based on cement dust)
Compressed Air Temperature ≤35℃ ≤35℃
Compressed Air Pressure 0.3~0.4MPa 0.3~0.4MPa
Compressed Air Flow 0.3~0.6m³/min 0.3~0.6m³/min
Cooling Water Temperature N/A ≤35℃
Cooling Water Pressure N/A 0.1~0.4MPa
Cooling Water Flow N/A 0.2~0.6m³/min
Housing Protection Grade IP65 IP65
Complete Equipment List 1 set air-cooled housing, 1 semi-fixed pan-tilt, 1 stainless steel bracket, 1 metal hose. (Vortex cooling tube & pinhole lens optional) 1 set air-water cooled housing, 1 semi-fixed pan-tilt, 1 stainless steel bracket, 3 metal hoses. (Vortex cooling tube & pinhole lens optional)
Applicable Camera Box camera (optional by customer) Box camera (optional by customer)
Installation Method Can be mounted on semi-fixed pan-tilt or 15kg electric pan-tilt Can be mounted on semi-fixed pan-tilt or 15kg electric pan-tilt
