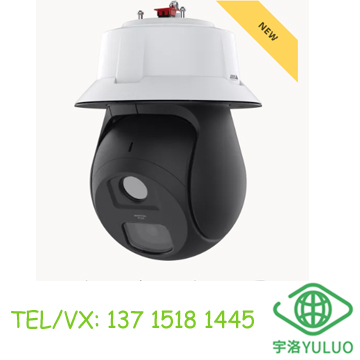

AXIS Q6411-LE Bispectral PTZ Camera
AI-powered, all-in-one thermal and visual camera
This all-in-one bispectral PTZ camera includes a thermal camera for reliable detection and verification 24/7 in all
weather and light conditions, and a visual camera with an extremely light-sensitive ½” sensor. A deep learning
processing unit (DLPU) runs advanced features and powerful analytics on the edge. For instance, AXIS Object Analytics is
preinstalled to detect, classify, track, and count humans, vehicles, and types of vehicles. It’s also compatible with AXIS
Perimeter Defender for enhanced area detection using thermal technology. Furthermore, Axis Edge Vault, a hardwarebased cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and
operations.
> 7mm QVGA for reliable thermal detection
> Outstanding visual identification
> Excellent image quality in all light conditions
> Next-generation AI-powered analytics
> Built-in cybersecurity with Axis Edge Vault
Camera datasheet
Variants
AXIS Q6411-LE 8.3 fps
AXIS Q6411-LE 30 fps
Visual sensor
Image sensor
1/2” progressive scan CMOS
Lens Optical zoom: 31x
Focal length: 6.91 – 214.64 mm
Horizontal field of view: 59.6 – 1.0°
Vertical field of view: 36.3°– 0.5°
Autofocus, P-iris
Day and night
Automatically removable infrared-cut filter
Removable infrared-pass filter
Minimum illumination
Color: 0.06 lux at 30 IRE, F1.36
B/W: 0.001 lux at 30 IRE, F1.36, 0 lux with IR
illumination on
Color: 0.09 lux at 50 IRE, F1.36
B/W: 0.008 lux at 50 IRE, F1.36, 0 lux with IR
illumination on
Thermal sensor
Image sensor
Uncooled microbolometer
384x288 pixels, pixels size: 17 μm
Spectral range: 8-14 μm
Lens Athermalized 7 mm, F1.18
Horizontal field of view: 55°
Vertical field of view: 41°
Near focus distance: 1.2 m (3.9 ft)
Dimensions Height: 304 mm (12.0 in)
With: ø 239 mm (9.4 in)
Weight 6200 g (13.7 lb)
