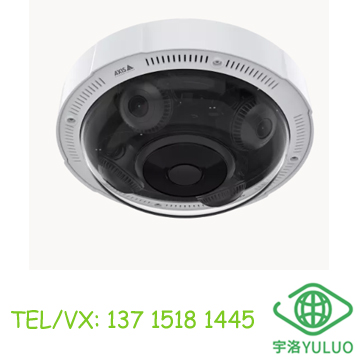

AXIS P3735-PLE Panoramic Camera
AI-powered 4x2 MP multidirectional camera
4*2 MP at 30 fps per channel
360° IR illumination with individually controlled LEDs
Flexible mounting options
Support for AI analytics
Axis Edge Vault safeguards the device
Ideal for wide-area surveillance, this multidirectional camera delivers excellent overviews and detailed coverage. With highly efficient power consumption, it ensures sustainable surveillance with lower operating costs.
Wide area surveillance with high-quality overview—24/7
AXIS P3735-PLE offers four channels with 2 MP per channel at 30 fps letting you capture both wide-angle and zoomed-in, detailed views. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear, reflection-free footage and excellent image quality even in low light or complete darkness. Plus, Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Furthermore, it’s possible to run metadata and AXIS Object Analytics streams on multiple channels so you can detect and classify people and vehicles, for instance entering a user-defined area. This makes it possible to count selected objects in an area of interest and trigger an alarm if a threshold is exceeded.
Brilliant Design
This compact camera offers various mounting options. For instance, it can be recessed mounted for discreet surveillance or mounted in ceilings for complete 360° coverage. When mounted on corners, it offers 270° coverage. Featuring a tamper-resistant casing and integrated IP66-/IP67-rated weather shield, it’s protected against rain, snow, and sunlight—ideal for outdoor wall mounting. In addition, all four varifocal camera heads can be moved and rotated to provide the optimal field of view. Plus, each head can be controlled individually so you can monitor scenes in four directions. The camera’s sensors can also be twisted, so two camera heads can be positioned closer together where one captures the wide view and the other zooms in on the same target.
Cost-efficient and secure
With four camera heads in one camera, AXIS P3735-PLE ensures fast, accurate, and cost-effective installation. That’s because there’s only one camera to install, one cable to draw, one IP address, and one video management software (VMS) license. Plus, it offers market-leading energy consumption compared to multiple single-sensor cameras—even with IR enabled. This ensures sustainable surveillance with lower operating costs. Thanks to remote zoom and focus capabilities, it eliminates the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements. And Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access.
Deep learning analytics
Built on ARTPEC-8, this high-performance camera features a deep learning processing unit (DLPU) eliminating the need for expensive servers and allowing for a faster and more scalable system. Plus, it improves processing capabilities so you can collect and analyze even more data than before—on the edge. This helps ensure fast, easy, and efficient forensic search capabilities in live or recorded video. Thanks to AXIS Object Analytics, it can detect and classify people and vehicles. Furthermore, with support for ACAP version 4, you can add value to your system with tailor-made applications based on deep learning on the edge available from Axis and our partners.
Technical specifications
Variants: AXIS P3735-PLE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.8"
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.14 lux
Min illumination/ light sensitivity (B/W) 0 lux
Video
Property description Property value
Max video resolution 1920x1080
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 3.18-8.12 mm
Horizontal field of view 360 °
Vertical field of view 55.3 - 21.8 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Audio
Property description Property value
Audio Support Yes
Security
Property description Property value
Signed OS Yes
Secure boot Yes
General
Property description Property value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -30 to 50 °C
Outdoor Ready Yes
Vandal rating IK09
IP rating IP66, IP67
Sustainability BFR/CFR free, PVC free
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Video Motion Detection
Housings & cabinets
AXIS TP3832-E Dome Smoked
Replacement dome for AXIS P37 Cameras
AXIS TP3833-E Dome Casing Black
Black casing for AXIS P37 Panoramic Camera Series
Mounts
AXIS ACI Conduit Adapter 1/2" U-Shape 20 mm
For U-shape cable protection
AXIS ACI Conduit Adapter 1/2"‒3/4" A
Step-up ACI adapter
AXIS T91B50 Telescopic Ceiling Mount
Telescopic ceiling mount with swivel action
Requires additional accessory
AXIS T91B51 Ceiling Mount
Ceiling mount with swivel action for low-ceilinged environments
Requires additional accessory
AXIS T91B63 Ceiling Mount
Robust and safe installation
Requires additional accessory
AXIS T91B67 Pole Mount
Pole mount for fixed dome cameras
Requires additional accessory
AXIS T91D61 Wall Mount 1.5” NPS
Wall mount with 1.5″ NPS thread
Requires additional accessory
AXIS T91D62 Telescopic Parapet Mount
Parapet installation with telescopic flexibility
Requires additional accessory
AXIS T91H61 Wall Mount
Quick connection and room for more
Requires additional accessory
AXIS T94N01D Pendant Kit
For indoor and outdoor use
AXIS TP3004-E Wall Mount Black
Wall mount with 1.5” NPS thread
Requires additional accessory
AXIS TP3105-E Pendant Kit Black
For indoor and outdoor use
AXIS TP3204-E Recessed Mount
Discreet indoor or outdoor installation
AXIS TP3301-E Pole Mount Black
For Axis dome and panoramic cameras
Requires additional accessory
AXIS TP3302-E Corner Mount
Corner mount for dome and panoramic cameras
Requires additional accessory
AXIS TQ6501-E Parapet Mount
Parapet mount with conduit side entry
Requires additional accessory
AXIS P3735-PLE AR, AU, BR, CN, EU, JP, KR, UK, US 02633-001
AXIS P3735-PLE IN 02633-113
