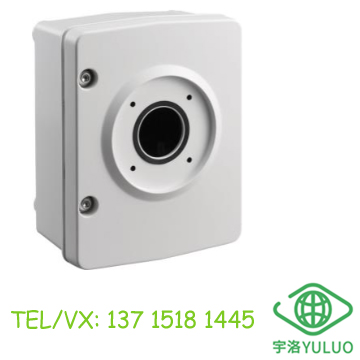

NDA-U-PA2 Surveillance cabinet 230VAC
CTN: NDA-U-PA2 | Product No.: F.01U.324.949
Complete power supply and connectivity solution suitable for outdoor use
230 VAC Input with 24 VAC / 100 W power output
Built-in surge protection to enhance system reliability
Seamlessly integrates within the camera mount eliminating the need for a separate junction box
Modular design for fast and easy installation
Weather resistant finish to maintain cosmetic appearance
Key Specifications
Dimensions (W x H x D) 170.0 mm x 216.4 mm x 105.0 mm(6.69 in. x 8.52 in. x 4.13 in.)
Weight 3773 g (8.32 lb)
Standard Color White (RAL 9003)
Construction Material Aluminum alloy
Surge protection on power output Peak current 21.4 A, peak power 1500 W (10/1000 µs)
Input 230 VAC, 50/60 Hz
Output rating 24 V @ 96 VA
Input fuses 0.8 A
Output fuses 2.0 A (Camera), 3.15 A (Heater)
Operating Temperature –60°C to 55°C (–76°F to 131°F)
Humidity 0% to 100%, condensing
arts included with this product
Quantity Component
1 Surveillance cabinet 230VAC
1 Quick Installation Guide
1 Safety manual
1 EAC document
Ordering information
NDA-U-PA2 Surveillance cabinet 230VAC
Surveillance cabinet, 230 VAC input, 24 VAC output,
IP66 Order number NDA-U-PA2
Accessories
NDA-U-WMT Pendant wall mount
Universal wall mount for dome cameras, white
Order number NDA-U-WMT
NDA-U-CMT Corner mount adapter
Universal corner mount, white
Order number NDA-U-CMT
NDA-U-PMAL Pole mount adapter large
Universal pole mount adapter, white; large
Order number NDA-U-PMAL
NDA-U-PMT Pendant pipe mount, 12" (31cm)
Universal pipe mount for dome cameras, 31 cm, white
Order number NDA-U-PMT
VG4-SFPSCKT ETHERNET TO SFP INTERFACE KIT
Ethernet media converter video transmitter/data
receiver fiber optic kit for AUTODOME cameras and for
MIC-IP-PSU for MIC analog cameras.
Order number VG4-SFPSCKT
SFP-2 Fiber module, multimode, 1310nm, 2LC
SFP Fiber Optic Module, 2 km (1.2 miles), 2 LC
connectors.
Multi-mode 1310 mm
Order number SFP-2
SFP-3 Fiber module, single-mode, 1310nm, 2LC
SFP Fiber Optic Module, 20 km (12.4 miles), 2 LC
connectors.Single-mode 1310 nm
Order number SFP-3
SFP-25 Fiber module, 1310/1550nm, 1SC
SFP Fiber Optic Module, 2 km (1.2 miles), 1 SC
connector Multi-mode
1310/1550 nm Order number SFP-25
SFP-26 Fiber module, 1550/1310nm, 1SC
SFP Fiber Optic Module, 2 km (1.2 miles), 1 SC
connector Multi-mode
1550/1310 nm Order number SFP-2
