AXIS P3747-PLVE/P3748-PLVE Panoramic Camera
4x5 MP multidirectional with AI analytics
4*5 MP at 20 fps per channel
Remote pan, tilt, roll, zoom (PTRZ)
Support for powerful analytics
360° IR illumination with individually controlled LEDs
Built-in cybersecurity with Axis Edge Vault
AXIS P3747-PLVE lets you monitor four different areas, around the clock, and even in challenging lighting. Stylish and discreet, this camera also offers PTRZ functionality for ease of installation and configuration.
Wide area surveillance with high-quality overview—24/7
Ideal for expansive outdoor areas, AXIS P3747-PLVE offers four channels with 5 MP per channel at 20 fps to capture clear images over great distances. It includes day/night functionality and 360° IR illumination with individually controllable LEDs and a removable IR cut filter. So, you’ll enjoy clear images in low light or darkness as well as undistorted colors during the day. Forensic WDR ensures clarity when there’s both dark and light areas in the scene. Additionally, thanks to extended tilt functionality, all four sensors are fully tiltable ensuring you have the flexibility to see what you want to see. Furthermore, you can run AXIS Object Analytics on multiple channels to detect, classify, track, and count people and vehicles.
Brilliant design for cost-effective installation

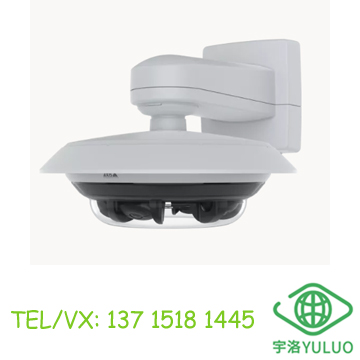

This stylish, discreet camera can be mounted on ceilings for complete 360° coverage. Or corner mounted for 270° coverage. And with four camera heads in one camera, it offers fast, accurate, and cost-effective installation. Additionally, PTRZ (Pan, Tilt, Roll, Zoom) functionality means that there’s no need to physically adjust the camera. You can remotely move and set up your camera allowing for quick and easy installation. This ensures less disruption and downtime and reduces the need to dispatch a technician. Presets make it easy to configure multiple devices. In addition, Axis Zipstream significantly lowers bandwidth and storage requirements without compromising image quality.
Powerful with strong security
This AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and vehicles. This DLPU also ensures improved processing and storage capabilities so you can collect and analyze even more data than before. Plus, it delivers valuable metadata facilitating fast, easy, and effi-cient forensic search capabilities in live or recorded video. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. And it offers FIPS 140-2 Level 2 certified secure cryptographic key storage and operations.
idth and space without sacrificing valuable information.
Forensic WDR
For maximum forensic value and usability in scenes with both very bright and very dark areas.
Edge Vault
Hardware-based cybersecurity platform that safeguards your Axis device.
Technical specifications
DATASHEET (PDF)
Variants: AXIS P3747-PLVE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.78"
Lightfinder Lightfinder
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.09 lux
Video
Property description Property value
Max video resolution 2592x1944
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 3.18 - 7.42 mm
Horizontal field of view 360 °
Vertical field of view 71.5-30.0 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Audio
Property description Property value
Audio Support Yes
Security
Property description Property value
Signed OS Yes
Secure boot Yes
General
Property description Property value
Remote focus Yes
Remote zoom Yes
Built-in IR Yes
OptimizedIR Yes
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66
Sustainability BFR/CFR free, PVC free
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Video Motion Detection
Power
AXIS 30 W Midspan
For indoor use, 240 V AC
AXIS 30 W Outdoor Midspan
For outdoor use, -40 °C to 65 °C (-40 °F to 149 °F)
AXIS T8061 Ethernet Surge Protector
Protects outdoor devices from power surges
AXIS TU8001 Ethernet Surge Protector
For use indoors or in an enclosure
AXIS P3747-PLVE 02897-001
