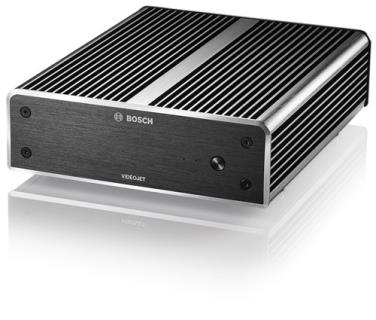

H.265 UHD decoder
CTN: VJD-7533 | Product No.: F.01U.420.692
HD, 4K UHD and MP decoding of H.264 and H.265 streams
Flexible monitor layouts
Directly drives up to four 4K UHD monitors
Displays VCA metadata overlays
Compact size and VESA mount
Key Specifications
Compression and sampling rate G.711 8 kHz; L16 16 kHz; AAC-LC 80kbps 16 kHz; AAC-LC 48kbps 16 kHz
Connector type HDMI
Dimensions (H x W x D) (mm) 47.3 x 150.6 x 186 mm
Encryption TLS 1.2; TLS 1.1; AES 256; AES 128
GOP structure IP; IBBP
Maximum heat loss (BTU/h) 205 BTU/h
Operating temperature (°C) 0 – 40 °C
Protocols / standards IPv4; UDP; TCP; HTTP; HTTPS; IGMP V2/V3; ICMP; RTSP; ARP; DHCP; SNMP (V3, MIBII); 802.1x, EAP/TLS; Digest authentication; RTP; RTSPS; SRTP
Resolution 1920 x 1080
Software compatibility Bosch Configuration Manager; Bosch Video Management System
Video compression H.264 (ISO/IEC 14496-10); H.265/HEVC
LED monitor, 55 inch, 4K
Commercial Type No. UML-554-90
Product No. F.01U.350.601
High-performance UHD (4K) 55-inch LED monitor.
LED monitor, 43 inch, Full HD
Commercial Type No. UML-434-90
Product No. F.01U.350.600
High-performance full HD (1080p) 43-inch LED monitor.
LED monitor, 32 inch, Full HD
Commercial Type No. UML-324-90
Product No. F.01U.350.599
High-performance full HD (1080p) 32-inch LED monitor.
27 inch 4K LED monitor
Commercial Type No. UML-275-90
Product No. F.01U.383.604
27 inch 4K (2160 x 3840) monitor
LED monitor, 27 inch, Full HD
Commercial Type No. UML-274-90
Product No. F.01U.350.598
High-performance full HD (1080p) 27-inch LED monitor.
23.8 inch FHD LED monitor
Commercial Type No. UML-245-90
Product No. F.01U.383.603
23.8 inch FHD (1920 x 1080) LED monitor
IP Matrix extension for 8 cameras
Commercial Type No. VJD-IPM-X8C
Product No. F.01U.382.737
IP Matrix extension for 8 cameras, max. 4 licences per decoder
Decoder VOCS license for 1 display
Commercial Type No. VJD-VOCS-1D
Product No. F.01U.382.738
Decoder VOCS license for 1 display
12 mths wrty ext. Videojet h. perf. dec
Commercial Type No. EWE-VJHPD-IW
Product No. F.01U.382.949
12 months warranty extension
12 mths wrty ext High Perf Monitor
Commercial Type No. EWE-HPMON-IW
Product No. F.01U.346.296
12 months warranty extension
Keyboard, USB CCTV-oriented
Commercial Type No. KBD-UXF
Product No. F.01U.279.328
USB CCTV-oriented keyboard for use with BVMS, BIS - Video Engine, or DIVAR IP systems.
Security keyboard with joystick
Commercial Type No. KBD-DIGITAL
Product No. 4.998.138.515
IntuiKey digital keyboard for system control and programming. Multi-lingual; quick-select menu
License for one additional keyboard
Commercial Type No. VJD-KBD-X1
Product No. Z.01X.000.438
License for one additional keyboard
Parts included with this product
Quantity Component
1 VIDEOJET decoder 7000
3 International power supply unit with EU, US and CN power cords
1 VESA mounting kit
1 Quick installation guide
1 Safety and security information
1 RoHS document
