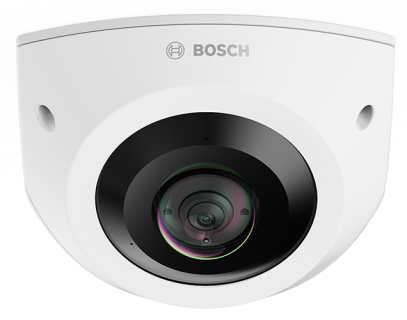

NCE-7703-FK Fixed dome 6MP corner IR
Fixed dome 6MP corner IR
CTN: NCE-7703-FK | Product No.: F.01U.407.683
131° Horizontal and 96° Vertical field of views for complete scene coverage with no blind spots
HDR and intelligent IR illumination with invisible IR (940 nm) for better images in bright and dark scenes
Corner-mount and anti-ligature (no-grip) design for maximum safety with quick and easy installation and set-up
Hard exterior shell to withstand the harshest environments
Built-in Intelligent Video and Audio Analytics to trigger relevant alerts and quickly retrieve data
Key Specifications
Frame rate (fps) 1 – 30 fps
Horizontal field of view (º) 131.10 °
Impact protection IK10+
IP rating IP67
Lens focal length (mm) 2.50 mm
Operating temperature (°C) -10 – 50 °C
Operating temperature (°F) 14 – 122 °F
Sensor type 1/1.8 inch CMOS
Video compression H.264 (ISO/IEC 14496-10); M-JPEG; H.265/HEVC
WDR technology HDR
Conduit back box, corner
Commercial Type No. NDA-7080-CBB
Product No. F.01U.406.392
Conduit back box, corner
Gunshot Detector License, perpetual
Commercial Type No. MVC-IAA-GUN
Product No. F.01U.412.673
Gunshot Detector License, perpetual
Replacement cover IR 940nm
Commercial Type No. NDA-7080-IR940
Product No. F.01U.406.351
Replacement cover IR 940nm
Replacement face plate, corner
Commercial Type No. NDA-7080-FP
Product No. F.01U.406.350
Replacement face plate, corner
IP SECURITY MICROSD CARD 64GB
Commercial Type No. MSD-064G
Product No. F.01U.394.680
64 GB industrial microSD card with health status monitoring
Midspan, 15W, single port, AC in
Commercial Type No. NPD-5001-POE
Product No. F.01U.305.288
Power-over-Ethernet midspan injector for use with PoE enabled cameras; 15.4 W, 1-portWeight: 200 g (0.44 lb)
IP SECURITY MICROSD CARD 256GB
Commercial Type No. MSD-256G
Product No. F.01U.394.682
256 GB industrial microSD card with health status monitoring
Midspan, 4 port x 15W, AC in
Commercial Type No. NPD-5004-POE
Product No. F.01U.305.289
Power-over-Ethernet midspan injector for use with PoE enabled cameras; 15.4 W, 4-portsWeight: 620 g (1.4 lb)
IP SECURITY MICROSD CARD 128GB
Commercial Type No. MSD-128G
Product No. F.01U.394.681
128 GB industrial microSD card with health status monitoring
Top cover, FLEXIDOME corner 7100i IR
Commercial Type No. NDA-7080-TC
Product No. F.01U.425.534
On-camera top cover for FLEXIDOME corner 7100i IR cameras
