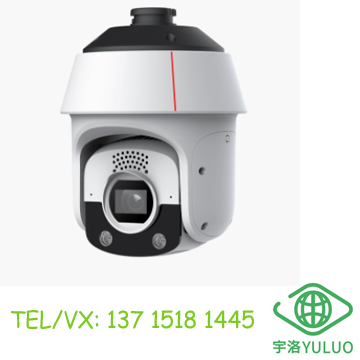

Model: D6550-10-Z33-SV 5MP Dual-Light Full-Color Voice AI Dome Camera
Product Description: 1T 5MP Dual-Light Full-Color Voice AI Dome Camera
Key Specifications:
Behavior Analysis: Fast movement detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection
Crowd Situation Analysis: Queue length statistics, area people statistics, pedestrian flow statistics
Targets: Target detection, target attribute detection
Humans: Human body detection
Computing Power: 1 TOPS
Sensor Size: 1/2.7" CMOS
Minimum Illumination: Color: 0.005Lux (F1.2, AGC ON, 1/30 shutter speed), Black and White: 0.0005Lux (F1.2, AGC ON, 1/30 shutter speed), 0Lux (IR on)
Lens Focal Length: 5.3-175mm
Lens Angle of View: Horizontal 54°(W)~2.4°(T) Vertical 40.2°(W)~1.7°(T) Field of view tolerance ≤5% Infrared illumination distance 150m White light illumination distance 30m Video encoding format MJPEG/H.264/H.265 Video frame rate 30/25fps adjustable, default 25fps Audio encoding format G.711a/G.711u/G.726/OPUS/AAC Gimbal rotation angle Horizontal 0°～360° Vertical -15°～90° Gimbal horizontal speed Keying speed: 0.1°~100°/S Preset position speed: 100°/S;
Note: Gimbal speed limiting is required in low temperatures.
Entering low-temperature speed limiting temperature: -20 degrees Celsius
Exiting low-temperature speed limiting temperature: -10 degrees Celsius
Horizontal speed limit: 30 degrees Celsius per second
Vertical speed limit: 20 degrees Celsius per second
Gimbal vertical speed Keying speed: 0.1~80°/s Preset position speed: 80°/s;
Note: Gimbal speed limiting is required in low temperatures.
Entering low-temperature speed limiting temperature: -20 degrees Celsius
Exiting low-temperature speed limiting temperature: -10 degrees Celsius
Horizontal speed limit: 30 degrees Celsius per second
Vertical speed limit: 20 degrees Celsius per second
Ethernet interface Supported
Number of Ethernet interfaces: 1
Ethernet interface bandwidth: 1 RJ45 10M/100M Ethernet port
Power supply type: AC24V, PoE (IEEE 802.3At)
Power consumption: Maximum power consumption: 22.3W, Typical power consumption: 8.9W
Operating temperature: -30℃~60℃ (without auxiliary light) -30℃~40℃ (with auxiliary light)
Operating humidity 5%~95% (non-condensing)
Protection Rating: IP66
Vehicle: Mainland China license plate recognition, vehicle body color detection, vehicle model detection, vehicle type detection
Vehicle Event Detection: Motor vehicle occupancy detection, non-motor vehicle occupancy detection, illegal parking detection, wrong-way driving/reversing detection
Traffic Data Statistics: Traffic flow statistics, non-motorized vehicle flow statistics, pedestrian statistics
Motorized Vehicle, Non-Motorized Vehicle, and Pedestrian Detection: Motorized vehicle, non-motorized vehicle, and pedestrian detection, cyclist attribute detection
