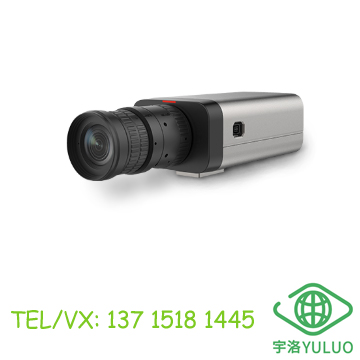

X1221-Fb 4T 2MP Ultra-High-Resolution Camera
Supports 4 TOPS computing power;
Supports heatmaps, behavior analysis, crowd situation analysis, face, human, vehicle/non-human, and traffic data statistics;
Supports backlight adaptation, fog-penetration adaptation, and speed adaptation;
Uses a 1/1.8" CMOS sensor;
Software-defined, supports online algorithm loading and upgrades;
120dB super wide dynamic range, restoring realistic details in high-contrast scenes;
Key Specifications
Chip: Hi3559AV100
Computing Power: 4 TOPS
Memory: DDR4 2.0 GB
Flash: SPI NAND FLASH 512.0 MB
Maximum Sensor Image Size: 2MP 1920(H)*1080(V)
Sensor Sensor Size: 1/1.8"
Minimum Illumination: Color: 0.0004Lux (F1.2, AGC) ON, 1/30 shutter speed), Black and White: 0.0001 Lux (F1.2, AGC ON, 1/30 shutter speed)
Video encoding format: MJPEG/H.264/H.265
Audio encoding format: G.711a/G.711u/G.726/OPUS
Heatmap: Supported
Vehicles: Mainland China license plate recognition, vehicle body color detection, vehicle model detection, vehicle type detection
Traffic Data Statistics: Traffic flow statistics, non-motorized vehicle flow statistics, pedestrian statistics
Behavior Analysis: Fast movement detection, removal detection, line crossing detection, intrusion detection, loitering detection
Crowd Situation Analysis: Queue length statistics, area population statistics, pedestrian flow statistics
Face: Face detection, face capture enhancement, face attribute detection
Human Body: Human body detection, human body attribute detection
Non-motorized Vehicle Flow Statistics: Motor vehicle, non-motorized vehicle, and pedestrian detection, pedestrian detection, motor vehicle detection, cyclist attribute detection
RS485 Interface: Supported
Switch Interface: Supported
Ethernet Interface: Supported
Number of Ethernet Interfaces: 1
Ethernet Interface Bandwidth: 1 RJ45 10M/100M/1000M adaptive Ethernet port
Optical Network Interface: 1 SFP slot
Power Supply Type: AC24V, DC12V, PoE (IEEE 802.3at)
Power Consumption: Maximum: 9.5W, Typical: 6.1W
Operating Temperature: -20℃~50℃ (with housing: -20℃~60℃)
Operating Humidity: 5%~95% (non-condensing)
Maximum Sensor Image Size: 2MP 1920(H)*1080(V)
Sensor Sensor Size: 1/1.8"
Minimum Illumination: Color: 0.0004Lux (F1.2, AGC ON, 1/30 shutter speed), Monochrome: 0.0001Lux (F1.2, AGC ON, 1/30 shutter speed)
Shutter Speed: 1/3s ~ 1/68250s
Day/Night Mode: Auto (ICR)/Color/Monochrome
Gain Control In manual exposure mode, 101 stops (0-100) can be set in increments of 1. Default is 0.
White Balance: Auto/Auto Tracking/Manual/One-Click Trigger
Digital Noise Reduction: 2D/3D Noise Reduction
Wide Dynamic Range: 120dB
High Light Suppression: Supported
Video Stabilization: Supported
Algorithm-based Fog Reduction: Supported
Exposure Compensation: Supported
Exposure Mode: Supported
Signal-to-Noise Ratio: >45dB
Powered Focus: Supported
Audio-Visual Assist Focus: Supported
Backlight Adaptive Focus: Supported
Fog Reduction Adaptive Focus: Supported
Speed Adaptive Focus: Supported
Corridor Mode: Supported
Image Correction: Supports Image Mirroring (Horizontal Mirror, Vertical Mirror, Horizontal and Vertical Mirror)
Privacy Occlusion: Supported
