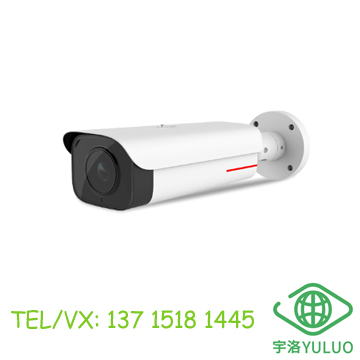

M2220-I 2MP Super Starlight Infrared Bullet Camera
Lens Focal Length: 2.8-12mm
Lens Angle of View: Horizontal: 31.2° (T-end) ~ 83.1° (W-end); Vertical: 17.5° (T-end) ~ 44.2° (W-end)
Built-in Infrared LED: Supported
Infrared LED Complementary Light Distance: 50m
M2220-I 2MP Super Starlight Infrared Bullet Camera
Behavior analysis, face recognition; 1/1.8" CMOS sensor; 120dB super wide dynamic range, restoring realistic details in high-contrast scenes;
Chip: Hi3519V101
Memory: DDR3 1.0 GB
Flash: SPI NAND FLASH 256.0 MB
Maximum Sensor Image Size: 2MP 1920(H)*1080(V)
Sensor Sensor Size: 1/1.8"
Minimum Illumination: Color: 0.0002Lux (F1.2, AGC ON, 1/30 shutter speed), Black and White: 0.0001Lux (F1.2, AGC) (ON, 1/30 shutter speed) Lens focal length: 2.8-12mm Lens angle of view: Horizontal: 31.2° (T-end) ~ 83.1° (W-end); Vertical: 17.5° (T-end) ~ 44.2° (W-end) Infrared illumination distance: 50m Video encoding format: MJPEG/H.264/H.265 Audio encoding format: G.711a/G.711u/G.726/OPUS Behavior analysis: Fast movement detection, abandoned detection, removal detection, line crossing detection, intrusion detection, area entry/exit detection, loitering detection Face: Face attribute detection RS485 interface: Supported Switch interface: Supported Ethernet interface: Supported Number of Ethernet interfaces: 1 Ethernet interface bandwidth: 1 RJ45 10M/100M/1000M adaptive Ethernet port Power supply type: AC24V, DC12V, PoE (IEEE 802.3at)
Power Consumption: Maximum power consumption: 16W, Typical power consumption: 4W
Operating Temperature: -40℃~60℃ (with auxiliary light off) -40℃~40℃ (with auxiliary light on)
Operating Humidity: 5%~95% (non-condensing)
Protection Rating: IP67
Explosion Proof: IK10
