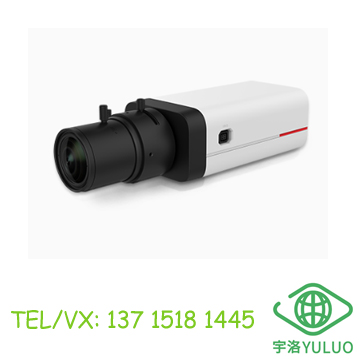

IPC6125-WDL-D 2MP Low-Light Wide Dynamic Range Bullet Network Camera
The IPC6125-WDL (-D/-FA/-P) low-light wide dynamic range bullet camera uses a 1/2.8” 2.13MP progressive scan CMOS sensor. In ultra-low light environments, it delivers less noise, better color reproduction, and overall brightness. It supports 120dB ultra-wide dynamic range and employs H.265 high-compression encoding technology, significantly reducing transmission and storage costs.
Suitable for low-light environments such as roads, warehouses, underground parking lots, bars, pipelines, and parks where high-definition image quality is required. Full HD Low Bandwidth: Based on the powerful computing capabilities of Huawei's self-developed chip platform, combined with H.265 encoding technology, this new encoding technology uses advanced techniques to improve the relationship between bitstream, encoding quality, latency, and algorithm complexity, achieving optimal settings. Compared to traditional H.264, it saves approximately 50% of bandwidth and storage resources.
All-Weather High Definition
Ultra-Low Light Capability: Delivers images with less noise and more realistic color reproduction, capturing even the smallest ray of light in unlit streets or dimly lit alleys, presenting a bright picture.
Ultra-Wide Dynamic Range: Industry-leading 120dB dynamic range handles harsh environments with strong contrast between light and dark areas. By combining different shutter speeds, it prevents bright areas from being overexposed and enhances details in dark areas.
Intelligent Video Analysis: Supports seven types of intelligent video analysis, including line-crossing detection, loitering detection, perimeter intrusion detection, abandoned objects detection, moving objects detection, target color recognition, and pedestrian/vehicle classification, meeting the needs of various business scenarios.
Model: IPC6125-WDL-D 2MP Starlight-Level Bullet Camera
IPC6125-WDL-P 2MP Starlight-Level Bullet Camera
IPC6125-WDL-FA 2MP Starlight-Level Bullet Camera
Image Sensor: 1/2.8” 2MP Progressive Scan CMOS
1/2.8” 2MP Progressive Scan CMOS
1/2.8” 2MP Progressive Scan CMOS
Maximum Resolution: 1920(H) × 1080(V)
1920(H) × 1080(V)
1920(H) × 1080(V)
Minimum Illumination:
(Color/Black & White)
Color: 0.005Lux
Black & White: 0.002Lux
Color: 0.005Lux
Black & White: 0.002Lux Color: 0.002 Lux
Black and White: 0.001 Lux
Wide Dynamic Range: 120dB
Intelligent Analysis: Line crossing, loitering, perimeter detection, abandoned objects, moving objects, target color recognition, vehicle/person classification, motion detection, occlusion detection
Power Supply: DC12V±25%, AC24V±25%
DC12V±25%, PoE
Surge Protection Rating: 6kV surge protection
6kV surge protection
6kV surge protection
Operating Temperature: -20℃～+60℃ -20℃～+60℃
