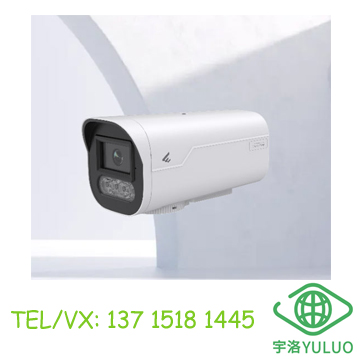

D2142-01-LIV 4MP Dual-Light Full-Color Voice AI Cylinder Starbucks Camera
Lens Focal Length: 3.6/6mm
Maximum Iris: F1.6
Image Sensor: 1/3" CMOS, 4MP 2560(H)*1440(V)
Iris Type: Fixed Iris
Lens Angle of View: D2142-01-LIV (3.6mm): Horizontal: 78°; Vertical: 42° and above, angle of view ±5%; D2142-01-LIV (6mm): Horizontal: 49°, Vertical: 27° and above, angle of view ±5%
Infrared Illumination Distance: 50m
White Light Illumination Distance: 30m
Video Encoding Format: H.264/H.265
Video Encoding Channels: Two Streams
Video Frame Rate: 25fps
Scene: Adaptive; Image: Adaptive
Minimum Illumination at Maximum Resolution: Color: 0.005Lux (F1.2, AGC) ON, 1/30 rainbow) Black and white: 0.0025Lux (F1.2, AGC ON, 1/30 rainbow), 0lux (infrared on)
Day and night modes: Auto/Color/Black and white/Timed, default Auto
Wide dynamic range 120db
White balance: Auto/Manual/Auto tracking/Global/Lock
Strong light suppression supported
Digital sleep mode: 2D/3D sleep mode
Algorithm fogging supports 3A traditional algorithm
Storage interface: MicroSD card slot, supports MicroSDHC/MicroSDXC, supports maximum capacity 256GB memory card
Network interface: 1 RJ45 10M/100M adaptive adapter port
Audio interface: Supports (1 built-in MIC), supports (1 speaker)
Power type: DC12V, PoE (IEEE 802.3af)
Power consumption: Maximum power consumption: 6.84W Typical power consumption: 2.17W
Operating humidity: 5%~95% (non-condensing)
Surge protection: 4kV
Protection rating: IP67
Corrosion resistance: Class C
Weight: Unit weight 483.5g; Package weight 696g
Dimensions: Unit dimensions 192mm×92.2mm×95.7mm;
Package dimensions 251mm×122mm×113mm
