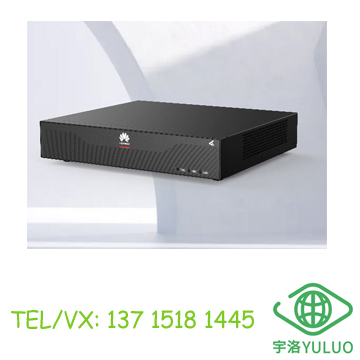

NVR900-D01-04 Network Video Recorder
CPU: 32-bit quad-core processor
Total Memory/Bit Width: 512MB, 32-bit
Number of Video Access Channels: 4
Number of Playback/Download Channels: 4
Video Access Bandwidth: Maximum 40Mbps
Video Forwarding Bandwidth: Maximum 60Mbps
Playback/Download Bandwidth: Maximum 60Mbps
Turbo Description: To enable Turbo mode on the NVR900, a front-end SDC super encoding camera must be connected. Enable Turbo Mode, mutually exclusive with human/machine/non-human intelligent features; mode selection is via configuration.
Turbo Video Access Channels: 6 channels
Turbo Playback/Download Channels: 4 channels
Turbo Video Access Bandwidth: Maximum 40Mbps
Turbo Video Forwarding Bandwidth: Maximum 60Mbps
Turbo Playback/Download Bandwidth: Maximum 60Mbps
Number of Disks: 1 bay
Number of Data Disks: 1 SATA 2.0 interface
Disk Type: Maximum 8TB per disk (surveillance disk)
Intelligent Recording: Supported
HDMI: 1 HDMI 1.4, resolution: 1280*720, 1920*1080
Decoding Specifications: 8MP (4K) supports 1 channel @30fps; 4MP supports 3 channels @30fps; 2MP (1080P) supports 6 channels @30fps; 720P supports 9 channels @30fps; D1 supports 18 channels @30fps; Multi-screen 1/4/6/8/9/16 Multi-screen recording
Recording methods: Supports manual recording, scheduled recording, and alarm-linked recording
Multi-channel simultaneous playback: 4 channels
Video Download: Maximum 4x speed per channel, with a maximum total download bandwidth of 60Mbps.
Multi-Speed Playback: Local Client: Supports 1/16x, 1/8x, 1/4x, and 1/2x slow-motion playback; supports 2x, 4x, 8x, and 16x fast-forward playback; frame-by-frame playback. S100: Supports 1x/32, 1/16x, 1/8x, x1/4, and x1/2x slow-motion playback; supports 2x, 4x, 8x, and 16x fast-forward playback; frame-by-frame playback. Web Client: Playback speed selection is not supported. App Client: Supports x1/4 and x1/2x slow-motion playback; supports x2 and x4x fast-forward playback; frame-by-frame playback.
Video Format: H.265/H.264
Audio Format: G.711a/G.711u
Network Protocol: TCP/IP, UDP/IP RTP (UDP), RTP (TCP), RTSP, NTP, HTTPS, DHCP, SMTP, DNS, UPnP
Device Access: Supports HUAWEI SDK, Onvif, RTSP
Huawei Cloud Service: Provides P2P Huawei Cloud service, supports remote access via mobile APP
Web: Google Chrome (version 55+) / Mozilla Firefox (version 70+) / Microsoft Edge (version 50+) / 360 Browser (version 9.1+)
Video Interface: 1 HDMI 1.4, resolution: 1280*720, 1920*1080
USB Interface: 2*USB 2.0 (rear)
Management Method: Supports B/S, local HMI, C/S management (iClient S100), and Haowang Cloud APP
Log Types: System supports operation logs, security logs, debug logs, and runtime logs
Power Supply: 12V/1.5A
Power Consumption: ≤4W
Operating Temperature: -10℃-55℃ (without disk), 0℃-45℃ (With disk) Operating humidity: -10%-90%
Weight: 0.9kg
Dimensions: 44.5*240*216mm
Chassis: 1U
