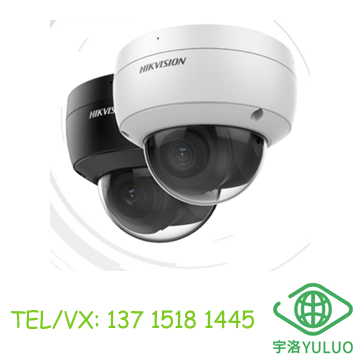

DS-2CD2123G2-IU 2MP AcuSense Fixed Dome Network Camera
Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.
High quality imaging with 2 MP resolution
Clear imaging against strong backlight due to 120 dB WDR
technology
Efficient H.265+ compression technology
Built-in microphone for real-time audio security
Water and dust resistant (IP67) and vandal resistant (IK10)
Focus on human and vehicle targets classification based on deep learning
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N Wide Dynamic Range 120 dB
Day & Night ICR Cut
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to355°
Lens Lens Type & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 127°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 104°
Aperture F1.6
Lens Mount M12
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Interface Ø 5.5 mm coaxial power plug
Material
Aluminum alloy body
Bubble: plastic
Camera Dimension Ø121.4 × 92.2 mm (Ø4.8″ × 3.7″)
Package Dimension 150 × 150 × 141 mm (5.9″ × 5.9″ × 5.6″)
Camera Weight Approx. 570 g (1.3 lb.)
With Package Weight Approx. 806 g (1.8 lb.)
Approval
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
Available Model
DS-2CD2123G2-IU(2.8/4 mm)
Accessory Optional
DS-1272ZJ-120B
Wall mount
DS-1275ZJ-SUS
Vertical pole mount
DS-1280ZJ-DM46
Junction box
DS-1253ZJ-M
Water-proof
DS-1272ZJ-120
Wall mount
DS-1276ZJ-SUS
Corner mount
DS-1271ZJ-120
Pendant Mount
