Dual view protective camera cover/camera Housing/yulotech

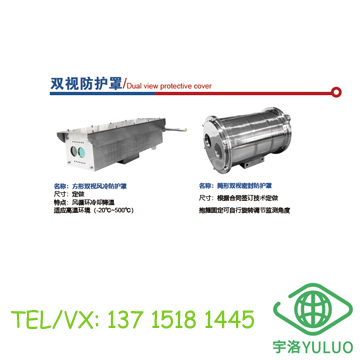

Left Product
Name: Square Dual-view Air-cooled Protective Housing
Dimension: Custom-made
Features: Air circulation cooling
Suitable for high-temperature environment (-20℃~500℃)
Right Product
Name: Cylindrical Dual-view Sealed Protective Housing
Dimension: Customized in accordance with contracted technical specifications
Features: Fixed by clamp; rotatable to adjust monitoring angle
Product Features & Parameters
Stainless steel material with high durability
Resistant to corrosion, pollution, extrusion, etc.
Widely used in various fields to enhance early warning capability
Integrates infrared thermal imaging and visible light imaging technology;
Supports high and low temperature tracking, captures thermal radiation for accurate identification and real-time feedback
Air cooling system + vortex cooling tube (optional)
(Adaptable to high-temperature environment from -20℃ to +500℃)
Adopt dual-wavelength information
Realize comprehensive and accurate data analysis
Dual-chamber structure, flexible configuration as required
The main chamber can install cameras of different models; the auxiliary chamber can be equipped with infrared lamps, lasers and other lighting equipment of various specifications.
Meet the monitoring requirements of two light sources simultaneously
Parameter Table Text
Function｜Square Dual-view Air-cooled Protective Housing｜Cylindrical Dual-view Sealed Protective Housing
Max Load / Self-weight｜≤40kg / 7kg｜≤40kg / 10kg
Product Features｜Good cooling effect, suitable for high temperature environment｜Good sealing performance
Operating Ambient Temperature｜-20℃~+500℃｜-20℃~+70℃
Ambient Dust Concentration｜≤200mg/m³ (based on cement dust)｜≤200mg/m³ (based on cement dust)
Compressed Air Temperature｜≤35℃｜/
Compressed Air Pressure｜0.3~0.4MPa｜/
Compressed Air Flow Rate｜0.3~0.6m³/min｜/
Current (A)｜≤500mA｜≤500mA
Window Quantity｜2 pcs｜2 pcs
Protection Rating｜Compliant with IP65 standard｜Compliant with IP65 standard
Standard Package｜1 set protective housing, 1 semi-fixed pan-tilt, 1 stainless steel bracket, 1 metal hose. (1 vortex cooling tube optional)｜1 set protective housing, 1 semi-fixed pan-tilt, 1 stainless steel bracket
Applicable Cameras｜Dual-spectrum thermal imaging cameras, cameras, infrared lamps, lasers, etc. (optional for users)｜Dual-spectrum thermal imaging cameras, cameras, infrared lamps, lasers, etc. (optional for users)
Installation Method｜Can be mounted on semi-fixed pan-tilt or 15kg electric pan-tilt｜Can be mounted on semi-fixed pan-tilt or 15kg electric pan-tilt
