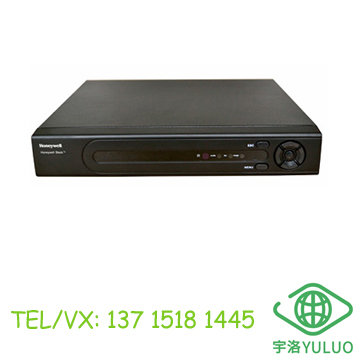

CALNVR-1004/08/16A Plug-and-Play Network Video Recorder
Models: CALNVR-1004A / CALNVR-1008A / CALNVR-1016A
Features
Compatible with network cameras from various manufacturers that comply with the ONVIF standard
Supports preview, storage, and playback of HD network video at up to 3MP / 2MP / 1.3MP resolution, depending on the model
Easy-to-use button control panel
Supports simultaneous HDMI and VGA output, with a maximum resolution of 1920 × 1080P
Recording modes: Manual / Alarm / Motion Detection / Schedule
Supports multi-channel synchronous playback
Supports network diagnostics, including channel network resource statistics and network traffic monitoring
Supports one 4TB SATA hard drive, as well as multiple backup methods including USB mobile hard drives, USB burners, and network storage
Free CMS client software CAL-CMS200 and mobile remote clients CALNVRView (iOS & Android) for remote management, preview, snapshot, alarm notification, and video recording storage
Supports up to 6 concurrent users for online preview and operation
Technical Specifications
datasheet as below :
Item CALNVR-1004A CALNVR-1008A CALNVR-1016A
System
Operating System Embedded Linux Embedded Linux Embedded Linux
System Resources Simultaneous multi-channel real-time recording, single-channel real-time playback, multi-user network operation, USB backup Same Same
Interface
User Interface 16-bit true color graphical menu, mouse support Same Same
Display Split 1 / 4 1 / 4 / 9 (8CH) 1 / 4 / 9 (8CH) / 16
Video
Input Channels 4 CH 8 CH 16 CH
Video Standard PAL (625 lines, 50 fps), NTSC (525 lines, 60 fps) Same Same
Video Encoding H.264 High Profile / Main Profile / Baseline Same Same
Preview Quality Monitor: D1; VGA & HDMI: HD Same Same
Playback Quality 960P / 720P / 960H / D1 / HD1 / CIF / QCIF 1080P / 720P / 960H / D1 / HD1 / CIF / QCIF 3.0MP / 1080P / 720P
Video Input 4 CH 720P / 8 CH D1 8 CH 1080P / 8 CH 720P / 16 CH D1 4 CH 3MP / 8 CH 1080P / 16 CH 720P
Motion Detection Supported Supported Supported
Audio
Standard G.711A Same Same
Two-Way Audio Not supported Not supported Not supported
Recording & Playback
Recording Mode Manual > Alarm > Motion Detection > Schedule Same Same
Local Playback 1 CH 960P (720P) / 4 CH D1 real-time 2 CH 1080P (960P) / 4 CH 720P real-time 1 CH 3MP / 2 CH 1080P / 4 CH 720P real-time
Recording Search Time-point search / Calendar search / Event search / Channel search Same Same
Storage & Backup
Storage per Channel Video: 1080P 80GB/day/CH, 720P 26GB/day/CH, 960H 24GB/day/CH, D1 16–20GB/day/CH; Audio: 691.2MB/day/CH Same Same
Recording Storage Local HDD, Network Same Same
Backup Method Network backup, USB mobile HDD, USB burner, SATA burner Same Same
Interfaces
Video Input RJ45 Same Same
Video Output 1 CH BNC, 1 CH VGA, 1 CH HDMI 1 CH VGA, 1 CH HDMI 1 CH VGA, 1 CH HDMI
Audio Input None 1 CH RCA 1 CH RCA
Audio Output 1 CH RCA Same Same
Alarm Input None None None
Alarm Output None None None
Network Interface 1 × RJ45 10M/100M adaptive Ethernet 1 × RJ45 10M/100M adaptive Ethernet 1 × RJ45 10M/100M/1000M adaptive Ethernet
PTZ Control 1 × RS485, supports 18 PTZ protocols Same Same
USB Interface 2 × USB 2.0 (for mouse, backup, burning, and system upgrade) Same Same
HDD Interface 1 × SATA (up to 4TB per port) Same Same
Others
Power Supply 12V / 2A Same Same
Operating Temperature 0°C to +55°C Same Same
Operating Humidity 10% to 90% Same Same
Dimensions 255mm (L) × 225mm (W) × 45mm (H) Same Same
System Compatibility ONVIF Version 2.0 Same Same
CMS Client CAL-CMS200 Same Same
Mobile Client CALNVRView, for iPhone, iPad, and Android devices Same Same
Certifications CE, FCC, C-Tick Same Same
