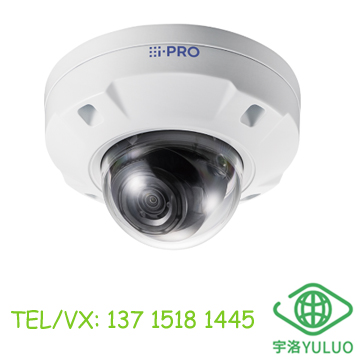

WV-U2532LA 2MP (1080p) Varifocal Lens Outdoor Dome Network Camera
DISCONTINUED PRODUCT
2MP (1080p) up to 30fps
2.5x built-in motorized zoom and motorized focus lens
iA (intelligent Auto)
Super Dynamic 120dB
Color night vision (0.006 to 0.1 lx)
H.265 Smart Coding
Corridor mode (90 degrees or 270 degrees in image rotation)
Built-in IR LED
NDAA Compliant
COMPONENT SPECIFICATION
Image Sensor Approx. 1/3 type CMOS image sensor
Minimum Illumination Color :
0.07 lx (30IRE, F2.0, 1/30s, AGC:11)*
0.1 lx (50IRE, F2.0, 1/30s, AGC:11)
0.006 lx (50IRE, F2.0, 16/30s, AGC:11)*BW :
0 lx (50IRE, F2.0, 1/30s, AGC:11, IR LED: On)
0.04 lx (50IRE, F2.0, 1/30s, AGC:11)
0.0025 lx (50IRE, F2.0, 16/30s, AGC:11)*
*Converted value
White Balance ATW1/ ATW2/ AWC
Maximum Shutter [30fps mode] Max. 1/10000 s to Max. 16/30 s
[25fps mode] Max. 1/10000 s to Max. 16/25 s
Intelligent Auto On / Off
Super Dynamic On / Off, the level can be set in the range of 0 to 31.
Dynamic Range Max.120 dB (Super Dynamic: On, Level: 31)
Adaptive Black Stretch -
Back Light Compensation/High Light Compensation BLC/ HLC/ Off
(only when Super Dynamic/ Intelligent auto: Off)
Fog Compensation On / Off, The level can be set in the range of 0 to 8.
(only when Intelligent auto / auto contrast adjust: Off)
Maximum Gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off/ On (IR Light Off)/ On (IR Light On)/Auto1 (IR Light Off)/ Auto2 (IR Light On)/ Auto3 (SCC)
IR LED Light High/ Middle/ Low/ Off Maximum irradiation distance: 30 m {Approx. 100 ft}
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Scene Change Detection(SCD) On / Off, 1 areas available
Privacy Zone On / Off (up to 8 zones available)
Image Rotation 0° (Off)/ 90°/ 180° (Upside-down)/ 270°
Camera Title (OSD) On / Off, Up to 20 characters (alphanumeric characters, marks)
Lens
COMPONENT SPECIFICATION
Focal Length 2.9 mm – 7.3 mm {1/8inches-9/32inches}
Optical Zoom 2.5x (Motorized zoom / Motorized focus)
Extra optical zoom 2.5x - 3.8x (when resolution is 1280x720)
Digital (electronic) zoom Choose from 3 levels of x1, x2, x4
Angular Field of View [16 : 9 mode] Horizontal : 42° (TELE) – 97° (WIDE), Vertical : 23° (TELE) – 54° (WIDE)
[ 4 : 3 mode] Horizontal : 31° (TELE) – 72° (WIDE), Vertical : 23° (TELE) – 54° (WIDE)
Maximum Aperture Ratio 1 : 2.0 (WIDE) – 1 : 3.0 (TELE)
Focusing Range 1 m {39-3/8 inches} – ∞
Adjusting Angle
COMPONENT SPECIFICATION
Ceiling Mounting -
Wall Mounting -
Browser GUI
COMPONENT SPECIFICATION
Camera Control Brightness
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Network
COMPONENT SPECIFICATION
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/H.264 [16 : 9 mode] 1920×1080, 1280×720, 640×360, 320×180
[ 4 : 3 mode] 1600×1200, 1280×960, VGA, QVGA
H.265/H.264 [Transmission Mode] Constant bit rate / VBR / Frame rate / Best effort
[Transmission Type] Unicast / Multicast
[Max. frame rate foreach stream]
Stream(1) : 1920x1080(30fps) / 1280x720(30fps) / 1600x1200(30fps)
Stream(2) : 640x360(30fps) / 1280x720(30fps) / 640x480(30fps)
Stream(3) : Off / Off / Off
JPEG(1) : 1920x1080(1fps) / 1920x1080(1fps) / 1600x1200(1fps)
JPEG(2) : 1280x720(1fps) / 1280x720(1fps) / 1280x960(1fps)
JPEG [Image Quality] 10 steps
Smart Coding GOP(Group of pictures) control: On(Frame rate control)/ On(Advanced)/ On(Mid)/ On(Low)/ Off
*Frame rate control and Advanced are only available with H.265.
AUTO VIQS: On/ Off
Audio Compression -
Audio Transmission Mode -
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, MQTT, LLDP
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
Secure Device Certificate GlobalSign® pre-installed, User authentication,Host authentication, HTTPS, 802.1X Support, Data encryption
SDXC/SDHC/SD Memory Card (Option) H.265/H.264 recording: Manual REC / Alarm REC (Pre/Post) / Schedule REC
Compatible SDXC/SDHC/SD Memory Card :
microSDXC memory card: 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card: 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card: 2 GB
Mobile Terminal Compatibility iPad, iPhone,
AndroidTM terminals
ONVIF® Profile G / S / T
Alarm
COMPONENT SPECIFICATION
Alarm Source VMD alarm, SCD alarm, Command alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification Indication on browser, TCP alarm notification output
Input/Output
COMPONENT SPECIFICATION
Audio input/Audio Output -
External I/O Terminals -
Monitor Output -
General
COMPONENT SPECIFICATION
Safety UL (UL60950-1), c-UL (CSA C22.2 No.60950-1), CE, IEC60950-1
EMC FCC (Part15 ClassA), ICES003 ClassA, EN55032 ClassB, EN55035
Power Source and Power Consumption PoE (IEEE802.3af compliant) Device:
DC48 V 140 mA, Approx. 6.7 W (Class 0 device)
Ambient Operating Temperature -30 °C to +50 °C (-22 °F to +122 °F)
{Power On range: -20 °C to +50 °C (-4°F to +122 °F)}
Ambient Operating Humidity 10 to 100 % (no condensation)
Anti-Condensation System Temish element
Water and Dust Resistance IP66 (IEC 60529), Type 4X (UL50E), NEMA 4X compliant
Shock Resistance IK10 (IEC 62262)
Wind Resistance Up to 40 m/s {approx. 89 mph}
Dimensions ø154 mm (W) x 103 mm (H) {ø6-1/16 inches × 4-1/16 inches (H)}
Dome radius 42 mm {1-21/32 inches}
Mass (Approx.) 1.0 kg {2.21 lbs.}
Finish Main body: Aluminum die cast/ PC resin, i-PRO white
Outer fixing screws: Stainless steel (Corrosion-resistant treatment)
Dome cover: Polycarbonate resin, Clear
NOTES
Important
– Safety Precautions : Carefully read the Basic Information,Installation Guide and Operating Instructions before using this product.
– i-PRO Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers' products used on the network.
– Masses and dimensions are approximate.
– Specifications are subject to change without notice.
