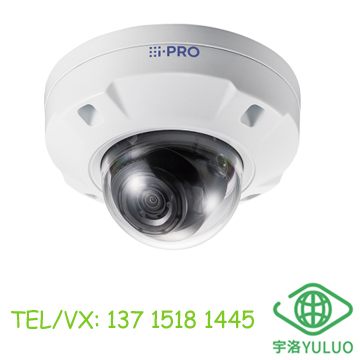

WV-S2536LN i-PRO Extreme H.265 Dome Network camera
DISCONTINUED PRODUCT
2MP (1080p) Vandal Resistant Outdoor Dome Network Camera
Intelligent Auto (with AI Engine)
Super Dynamic 144dB
Color night vision (0.007 to 0.009 lx)
Smart Coding (with AI Engine)
ClearSight Coating
Built-in IR LED
Fiber Optic Media Converter Unit (Optional WV-S25F1)
NDAA Compliant
Camera
COMPONENT SPECIFICATION
Image Sensor Approx. 1/2.8 type CMOS image sensor
Minimum Illumination Color : 0.007 lx (30IRE, F1.3, 1/30s) , Color : 0.009 lx (50IRE, F1.3, 1/30s)
BW : 0.005 lx (50IRE, F1.3, 1/30s) , BW : 0 lx (50IRE, F1.3,1/30s with IR LED)
White Balance ATW1 / ATW2 / AWC
Shutter Speed [60 fps Mode] 1/60 Fix to 1/10000 Fix, [30 fps/15 fps mode] 1/30 Fix to 1/10000 Fix
[50 fps Mode] 1/50 Fix to 1/10000 Fix, [25 fps/12.5 fps mode] 1/25 Fix to 1/10000 Fix
Intelligent Auto On / Off
Super Dynamic*2 On / Off,
The level can be set in the range of 0 to 31.
Dynamic Range Max.144 dB
(Super Dynamic : On, Level 31)
Adaptive Black Stretch The level can be set in the range of 0 to 255.
Back light compensation / High light compensation BLC (Back light compensation) / HLC (High light compensation) /
Off (only when Super dynamic / Intelligent Auto : Off)
Fog Compensation On / Off (only when Intelligent auto / auto contrast adjust : Off)
Maximum Gain (AGC) The level can be set in the range of 0 to 11.
Color/BW (ICR) Off / On (IR Light Off) / On (IR Light On) / Auto1 (IR Light Off) /Auto2 (IR Light On) / Auto3 (SCC)
IR LED Light High / Middle / Low / Off,
Maximum irradiation distance : 70 m {Approx. 230 ft} (30IRE), 50 m {Approx. 164 ft} (50IRE)
Digital Noise Reduction The level can be set in the range of 0 to 255.
Video Motion Detection (VMD) On / Off, 4 areas available
Scene Change Detection (SCD) On / Off, 1 areas available
Audio Detection On / Off
AI Sound classification Gunshot, Yell, Vehicle horn, Glass break
AI Analytics Yes
Privacy Zone On / Off, Up to 8 zones available
VIQS On / Off, Up to 8 zones available
Image rotation*3 0 ° / 90 ° / 180 ° / 270 °
Camera Title (OSD) On / Off,
Up to 40 characters (alphanumeric characters, marks)
Focus Adjustment Auto focus
Lens
COMPONENT SPECIFICATION
Optical Zoom 3.1x (Motorized zoom / Motorized Focus)
Extra zoom 3.1x - 9.3x (when resolution is 640 x 360)
Focal Length 2.9 - 9 mm {1/8 inches - 11/32 inches}
Angular Field of View [16 : 9 mode] Horizontal : 36° (TELE) – 113° (WIDE), Vertical : 20° (TELE) – 60° (WIDE)
[ 4 : 3 mode] Horizontal : 26° (TELE) – 82° (WIDE), Vertical : 20° (TELE) – 60° (WIDE)
Maximum Aperture Ratio 1 : 1.3 (WIDE) – 1 : 2.5 (TELE)
Focusing Range 0.3 m {11-13/16 inches} – ∞
DORI
COMPONENT SPECIFICATION
Detect (25ppm / 8ppf) Wide: 25.4m / 83.4 ft, Tele: 118.2 m / 387.7 ft
Observe (62.5ppm / 19ppf) Wide: 10.2 m / 33.4 ft, Tele: 47.3 m / 155.1 ft
Recognize (125ppm / 38ppf) Wide: 5.1 m / 16.7 ft, Tele: 23.6 m / 77.5 ft
Identify (250ppm / 76ppf) Wide: 2.5m / 8.3 ft, Tele: 11.8 m / 38.8 ft
Adjusting Angle
COMPONENT SPECIFICATION
Adjusting Angle Horizontal : -194 to +166°, Vertical : -30 to +85°, Yaw : ±100°
Browser GUI
COMPONENT SPECIFICATION
Camera Control Brightness, AUX On / Off
Audio Mic (Line) Input : On / Off Volume adjustment : Low / Middle / High
Audio Output : On / Off Volume adjustment : Low / Middle / High
GUI / Setup Menu Language English, Italian, French, German, Spanish, Portuguese, Russian, Chinese, Japanese
Browser*4 Microsoft Edge, Firefox, Google Chrome
Network
COMPONENT SPECIFICATION
Network IF 10Base-T / 100Base-TX, RJ45 connector
Resolution H.265/ H.264/ JPEG (MJPEG) [16 : 9 mode (60 fps mode)], [16 : 9 mode (30 fps mode)],
[16 : 9 mode (50 fps mode)], [16 : 9 mode (25 fps mode)]
1920x1080, 1280x720, 640x360, 320x180
[4 : 3 mode (30 fps mode)], [4 : 3 mode (25 fps mode)]
1280x960, VGA, QVGA
[4 : 3 mode (15 fps mode)], [4 : 3 mode (12.5 fps mode)]
2048x1536, 1280x960, VGA, QVGA
JPEG - Image Quality 10 steps
Smart Coding GOP (Group of pictures control):
Off/ Low (Variable GOP 1s-8s)/ Mid (Variable GOP 4s-16s)/
Advanced(Fixed GOP 60s w/1s key-frame)/
Frame rate control (Variable GOP 4s-16s with frame rate control)
*Advanced and Frame rate control are only available with H.265.
Smart VIQS: On(High)/On(Low)/Off, Smart P-picture control: On/Off
Audio Compression G.726 (ADPCM) : 16 kbps / 32 kbps , G.711 : 64 kbps
AAC-LC : 64 kbps / 96 kbps / 128 kbps
Audio Transmission Mode Off / Mic (Line) input / Audio output / Interactive (Half duplex) / Interactive (Full duplex)
Supported Protocol IPv6 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, SMTP, DNS, NTP, SNMPv1/v2/v3, DHCPv6, RTP, MLD, ICMP, ARP, IEEE,802.1X,DiffServ, LLDP
IPv4 : TCP/IP, UDP/IP, HTTP, HTTPS, SSL/TLS, RTSP, RTP, RTP/RTCP, SMTP, DHCP, DNS, DDNS, NTP, SNMPv1/v2/v3, UPnP, IGMP, ICMP, ARP, IEEE 802.1X, DiffServ, SRTP, LLDP
No. of Simultaneous Users Up to 14 users (Depends on network conditions)
Secure Device Certificate GlobalSign® pre-installed, User authentication,Host authentication, HTTPS, 802.1X Support, Data encryption
SDXC/SDHC/SD Memory Card (Option) H.265 / H.264 recording :
Manual REC / Alarm REC (Pre/Post) / Schedule REC / Backup upon network failure
JPEG recording :
Manual REC / Alarm REC (Pre/Post) / Backup upon network failure
Available SDXC/SDHC/SD Memory Card :
microSDXC memory card : 64 GB, 128 GB, 256 GB, 512 GB
microSDHC memory card : 4 GB, 8 GB, 16 GB, 32 GB
microSD memory card : 2 GB
Mobile Terminal Compatibility iPad, iPhone, Android™ terminals
ONVIF Profile G / S / T / M
Alarm
COMPONENT SPECIFICATION
Alarm Source 3 terminals input, VMD alarm, Command alarm, Audio detection alarm
Alarm Actions SDXC/SDHC/SD memory recording, E-mail notification,
HTTP alarm notification Indication on browser, TCP alarm notification output
Input/Output
COMPONENT SPECIFICATION
Monitor Output (for Adjustment) VBS : 1.0 V [p-p] / 75 Ω, composite, Pin jack
An NTSC or PAL signal can be outputted from camera
Audio input*8 ø3.5 mm stereo mini jack
Audio Output*8 ø3.5 mm stereo mini jack (monaural output)
Output impedance : Approx. 600 Ω (unbalanced) , Output level : –20 dBV
External I/O Terminals*8 ALARM IN 1 (Alarm input 1/ Black & white input/ Auto time adjustment input) (x1)
ALARM IN 2 (Alarm input 2/ ALARM OUT) (x1), ALARM IN 3 (Alarm input 3/ AUX OUT) (x1)
General
COMPONENT SPECIFICATION
Safety UL (UL62368-1), c-UL (CSA C22.2 No.62368-1), CE, IEC62368-1
EMC FCC (Part15 ClassA), ICES-003 ClassA, EN55032 ClassB, EN55035
Power Source and Power Consumption DC power supply*8 : DC12 V 730 mA, Approx. 8.8 W
PoE (IEEE802.3af compliant) Device : DC48 V 190 mA, Approx. 9.1 W (Class 0 device)
Ambient Operating Temperature -40 °C to +60 °C (-40 °F to 140 °F)
(Power On range : –30 °C to +60 °C {–22 °F to +140 °F})
Ambient Operating Humidity 10 to 100 % (no condensation)
Anti-Condensation System Temish element + Heater + moisture absorption gel
Water and Dust Resistance IP66, IEC60529 measuring standard compatible, Type 4X(UL50E), NEMA 4X compliant
Shock Resistance 50J (IEC 60068-2-75 compliant), IK10 (IEC 62262)
Dimensions ø154 mm x 105 mm (H) {ø6-1/16 inches x 4-1/8 inches (H)}
Mass (Approx.) Approx. 1.1 kg {2.43 lbs.}
Finish Main body : Aluminum die cast and resin, i-PRO white
Outer fixing screws : Stainless steel (Corrosion-resistant treatment)
Dome section : Polycarbonate resin, Clear (with ClearSight coating)
NOTES
Important
– Safety Precautions : Carefully read the Basic Information,Installation Guide and Operating Instructions before using this product.
– i-PRO Co., Ltd. cannot be held responsible for the performance of the network and/or other manufacturers' products used on the network.
– Masses and dimensions are approximate. Specifications are subject to change without notice.
