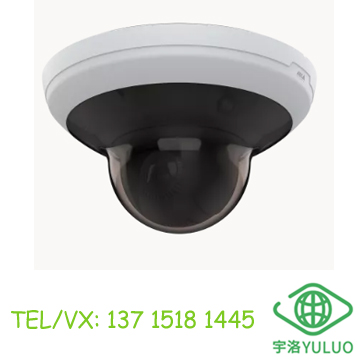

AXIS M5000 PTZ Camera
15 MP indoor camera with 10x optical zoom
3x 5MP sensors for situational awareness
Total overview, zoomed-in details
Covers indoor areas up to 400 m2 (4300 ft2)
10x optical zoom with HDTV 1080p
Autofocus and D/N functionality
From banks to retail stores, M5000 PTZ is ideal for a wide variety of indoor applications. This 15 MP indoor camera features three 5 MP sensors and one PTZ camera with 10x optical zoom, so you get the benefits of four cameras, while installing just one.
Total situational awareness
AXIS M5000 offers total situational awareness of indoor areas up to 400 m2 (4300 ft2). Featuring three 5 MP sensors and one PTZ camera with 10x optical zoom and HDTV 1080p, it lets you benefit from sweeping overviews, and you can zoom in to get the details. With everything displayed on one monitor, you can move from overview to detailed views in a single click. Furthermore, it features indication lights to help deter antisocial and criminal behavior, ideal for retails stores and large indoor areas.
Great image quality
Including three 5 MP sensors with a total of 15 MP resolution, this cost-effective, indoor camera offers great image quality. It has day/night functionality with an automatically removable infrared-cut filter. And, with autofocus capabilities, you can quickly zoom in on areas of interest. Thanks to polygonal privacy masking, it’s possible to pixelate whole areas where privacy must be kept, such as a neighboring property. Plus, click in picture functionality allows you to click directly in the picture to define the central position of the selected camera. Furthermore, Zipstream with support for H.264 and H.265 significantly reduces bandwidth and storage requirements.
Cost-efficient and easy to install
With AXIS M5000, you get the benefits of four cameras, while installing just one. So, there’s only one camera to install, one cable to run, one IP address, and one video management software (VMS) license to install.  Thanks to edge storage you can record directly to an onboard memory card for easy installation and maintenance. Designed to blend in seamlessly with any environment, a black dome is also available as an accessory. Furthermore, Axis Edge Vault protects your Axis device ID and simplifies authorization of Axis devices on your network.
Technical specifications
Variants: AXIS M5000 60 Hz / AXIS M5000 50 Hz
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2.8"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Security
Property description Property value
Signed OS Yes
Secure boot Yes
TPM –
General
Property description Property value
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature 0 to 40 °C
Outdoor Ready –
Vandal rating -
IP rating IP51
Designed for repaint –
Analytics
Property description Property value
Autotracking version -
Orientation aid -
Video
Property description Property value
Max video resolution 1920x1080
Max frames per second 25/30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 4.7 - 47 mm
Horizontal field of view 61.8-6.7 °
Vertical field of view 36.3-3.8 °
Pan, Tilt, Zoom
Property description Property value
Pan range 360 with autoflip
Tilt range 0 to -180
Guard tour limited guard tour
Optical zoom 10
Digital zoom 12
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
AV1 –
Audio
Property description Property value
Audio Support Yes
Built-in microphone -
System Integration
Property description Property value
Audio detection Yes
Active tampering –
Alarm inputs/outputs -
Network
Property description Property value
PoE Class 4
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
AXIS Loitering Guard
For detecting loiterers
AXIS Video Motion Detection
Accessories
Make the most out of your solution. Use the filter to find compatible products. Start by selecting your product variant (compatibility may rely on it).
Mounts
AXIS T91A64 Corner Bracket
Mounting on external corners
Requires additional accessory
AXIS T91B50 Telescopic Ceiling Mount
Telescopic ceiling mount with swivel action
Requires additional accessory
AXIS T91B51 Ceiling Mount
Ceiling mount with swivel action for low-ceilinged environments
Requires additional accessory
AXIS T91B57 Pole Mount
For sturdy installations on poles
Requires additional accessory
AXIS T91B63 Ceiling Mount
Robust and safe installation
AXIS T91D62 Telescopic Parapet Mount
Parapet installation with telescopic flexibility
Requires additional accessory
AXIS T94A01D Pendant Kit
Mounting on 1.5″ NPS threaded bracket
AXIS TM5601 Conduit Back Box
For ceiling installations of AXIS M5000/-G PTZ Camera
AXIS TQ5001-E Wall-and-Pole Mount
Robust mount for PTZ cameras
AXIS TQ6501-E Parapet Mount
Parapet mount with conduit side entry
Requires additional accessory
AXIS M5000 60 Hz 02188-001
AXIS M5000 50 Hz 02187-001
AXIS M5000 50 Hz 02187-113
Lens PTZ camera:
Varifocal, 4.7–47 mm, F1.6–3.0
Horizontal field of view: 61.8°–6.7°
Vertical field of view: 36.3°–3.8°
Autofocus, auto-iris, P-Iris control
Overview cameras:
Focal length 2.39 mm, F2.0
Horizontal field of view: 360°
Vertical field of view: 93°
Dimensions
Height: 138 mm (5.4 in), ø 247 mm (9.7 in)
Weight 1.95 kg (4.3 lb)
