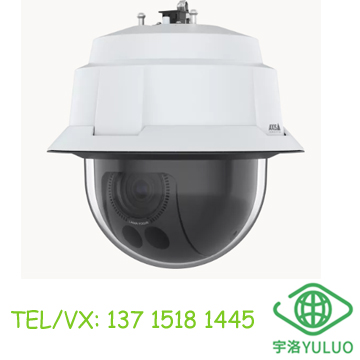

AXIS Q6088-E 4K PTZ Camera 03190-301
Iconic PTZ with 4K high-resolution details
High-resolution with 1/2" sensor
Lightfinder 2.0 and Forensic WDR
Next-generation AI-powered analytics
Precise laser focus and 34x optical zoom
Built-in cybersecurity with Axis Edge Vault
This high-resolution, light-sensitive camera offers excellent image quality and laser focus for precise focus every time. It supports AV1 codec and provides accelerated performance to run impressive analytics applications on the edge.
Great high-resolution details
Built on ARTPEC-9, this next-generation outdoor camera offers outstanding high-resolution image quality in 4K at 60 fps. It features a light-sensitive ½” sensor to deliver clear, bright images and better handling of shadows—ideal in urban areas. With 34x optical zoom, you can easily follow fast-moving objects. Plus, laser focus ensures precise focus every time. Lightfinder 2.0 and Forensic WDR deliver true colors and great detail in challenging light or near darkness. Furthermore, Axis Zipstream with support for AV1, H.264, and H.265 significantly lowers bandwidth and storage requirements.
Powerful, next-generation analytics
Featuring a deep learning processing unit (DLPU), this AI-based camera runs advanced features and powerful analytics on the edge. It also delivers valuable metadata, facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. AXIS Object Analytics comes preinstalled to detect, classify, track, and count humans, vehicles, and different types of vehicles. It also comes with  AXIS Image Health Analytics. Autotracking 2 with click-and-track functionality enables active object tracking, and an orientation aid enables dynamic text overlays. What’s more, chameleon masking safeguards privacy.
Robust with strong cybersecurity
Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and offers FIPS 140-3 Level 3 certified secure key storage and operations. With IP66-, IK10-, NEMA 4x, and NEMA TS2-ratings, it’s both impact and weather-resistant. The camera’s operating temperature is -50 to 50 °C (-58 to 122 °F), while Arctic Temperature Control allows it to power up at as low as -40 °C (-40 °F). With shock detection, you'll be informed if the camera has been hit. And defog functionality ensures clear images despite fog or smog. Furthermore, it offers support for fiber connection, PoE, audio, four I/O ports, and smart restart with the included midspan.
Edge Vault
Hardware-based cybersecurity platform that safeguards your Axis device.
Forensic WDR
For maximum forensic value and usability in scenes with both very bright and very dark areas.
Zipstream
Save bandwidth and space without sacrificing valuable information.
Technical specifications
Datasheet (pdf)
Variants: AXIS Q6088-E / AXIS Q6088-E No Midspan
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.3 lux
Min illumination/ light sensitivity (B/W) 0.01 lux
Security
Property description Property value
Signed OS Yes
Secure boot Yes
TPM –
General
Property description Property value
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -50 to 55 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67
Designed for repaint Yes
Analytics
Property description Property value
Autotracking version Autotracking 2
Orientation aid orientation aid PTZ
Video
Property description Property value
Max video resolution 3840x2160
Max frames per second 60
Day and Night functionality Yes
Electronic image stabilization Yes
Lens
Property description Property value
Focal length 6.64 - 225.50 mm
Horizontal field of view 60.8 - 2.0 °
Vertical field of view 36.5 - 1.1 °
Pan, Tilt, Zoom
Property description Property value
Pan range 360 endless
Tilt range 0 to -90
Guard tour preset position tour
Optical zoom 34
Digital zoom 12
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
AV1 On
Audio
Property description Property value
Audio Support Yes
Built-in microphone -
System Integration
Property description Property value
Audio detection –
Active tampering Yes
Alarm inputs/outputs -
Network
Property description Property value
PoE Class 6
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Image Health Analytics
Ensures image quality for confident monitoring
AXIS Live Privacy Shield
Versatile dynamic privacy masking
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Video Motion Detection
Supported
AXIS Perimeter Defender PTZ Autotracking
For automatic close-ups of detected objects
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q6088-E No Midspan AR, AU, BR, CN, EU, IN, JP, KR, UK, US 03190-301
AXIS Q6088-E CN 03190-009
AXIS Q6088-E AR 03190-008
AXIS Q6088-E KR 03190-007
AXIS Q6088-E AU 03190-006
AXIS Q6088-E JP 03190-005
AXIS Q6088-E US 03190-004
AXIS Q6088-E UK 03190-003
AXIS Q6088-E EU 03190-002
AXIS Q6088-E BR 03190-012
Accessories Mounts
AXIS T91A64 Corner Bracket
Mounting on external corners
Requires additional accessory
AXIS T91B50 Telescopic Ceiling Mount
Telescopic ceiling mount with swivel action
Requires additional accessory
AXIS T91B51 Ceiling Mount
Ceiling mount with swivel action for low-ceilinged environments
Requires additional accessory
AXIS T91B57 Pole Mount
For sturdy installations on poles
Requires additional accessory
AXIS T91B63 Ceiling Mount
Robust and safe installation
AXIS T91D62 Telescopic Parapet Mount
Parapet installation with telescopic flexibility
Requires additional accessory
AXIS T91G61 Wall Mount
Quick connection and room for more
AXIS T94A01D Pendant Kit
Mounting on 1.5″ NPS threaded bracket
AXIS TQ5001-E Wall-and-Pole Mount
Robust mount for PTZ cameras
AXIS TQ6501-E Parapet Mount
Parapet mount with conduit side entry
Requires additional accessory
Lens Varifocal, 6.64 - 225.5 mm, F1.7–5.1
Horizontal field of view: 60.8°–2.0°
Vertical field of view: 36.5°–1.1°
Minimum focus distance: 3 m (9.8 ft)
Laser focus, autofocus, P-iris
Dimensions
For the overall product dimensions, see the dimension
drawing in this datasheet.
Effective Projected Area (EPA): 0.046 m2 (0.5 ft2)
Weight 4100g(9lb)
