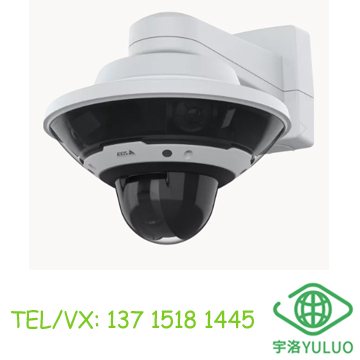

AXIS Q6300-E Panoramic Camera
AI-based, 360° overview, easy installation
360° camera with 4x5 MP ½”sensors
Current AXIS Q61/Q63/P56-E PTZ Camera recommended
Easy installation with support for Wi-Fi dongle
Directional audio detection
Built-in cybersecurity with Axis Edge Vault
Designed for operation with AXIS Q61/Q63/P56 PTZ Series, this multidirectional camera delivers both 360° overview and great details. With
a USB port, installers can insert a Wi-Fi dongle and quickly configure cameras while on site.
Sell it all This multidirectional camera offers four 5 MP sensors and delivers 360° overview for total situational awareness. With four ½” sensors, it ensures
clear, bright images and better handling of shadows even in challenging light conditions, often reducing the need for IR illumination in dark
scenes. This camera is specially designed for operation with AXIS Q61/Q63/P56 PTZ Series to capture high-resolution overviews and great
details in one complete camera solution. And you can move from overview to zoomed-in detailed views with just one mouse click. It’s also easy to
change lenses and adjust the field of view. For instance, you can use a wide-angle lens to monitor wide open areas, or a tele lens to get great
details from a distance. What’s more, autopilot enables automatic PTZ tracking. And directional audio detection redirects the PTZ camera to the
audio source whenever an audio incident is detected.
Powerful and secure
Built on a dual system-on-chip (SoC), this powerful camera features a deep learning processing unit (DLPU) that lets you run advanced features and
powerful analytics at the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect, classify, track, and count humans and
types of vehicles. This DLPU also delivers valuable metadata facilitating efficient forensic search capabilities in live or recorded video. Axis Edge
Vault, our hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access. Plus, it offers
secure key storage with FIPS 140-2 Level 2 certified, secure cryptographic key storage and operations. Furthermore, privacy masking with mosaic lets
you pixelate whole areas of the scene.Cost-efficient installation and operation Using the same bracket, power supply, and network cable as the integrated
PTZ camera, there's no extra equipment required for AXIS Q6300-E. With four camera heads in one camera, it ensures fast, accurate, and cost-effective
installation. It also features a USB port so installers can insert a Wi-Fi dongle and quickly see the camera view as they adjust it. This makes it easy
to configure cameras while on site. Autofocus and auto-alignment functionality let you automatically adjust the camera sensors and PTZ
camera, eliminating the need for hands-on fine-tuning. Furthermore, Axis Zipstream significantly lowers bandwidth and storage requirements without
compromising image quality.
Technical specifications
Variants: AXIS Q6300-E 60 Hz / AXIS Q6300-E 50 Hz
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/2"
Lightfinder Lightfinder 2.0
Wide dynamic range WDR
Min illumination/ light sensitivity (Color) 0.06 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Property description Property value
Max video resolution 2592x1944
Max frames per second 30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 3.7 mm
Horizontal field of view 360 °
Vertical field of view 84 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Audio
Property description Property value
Audio Support Yes
Security
Property description Property value
Signed OS Yes
Secure boot Yes
General
Property description Property value
Remote focus Yes
Remote zoom –
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -50 to 55 °C
Outdoor Ready Yes
Vandal rating IK10
Analytics
Make your network camera solution more intelligent with powerful analytics
and functionality.
Included
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Video Motion Detection
IP rating IP66
Sustainability BFR/CFR free, PVC free
Part number for ordering
NAME AXIS REGION PART NUMBER
AXIS Q6300-E 60 Hz BR, JP, KR, US 02943-001
AXIS Q6300-E 50 Hz AR, AU, CN, EU, IN, UK 02942-001
Lenses
Lens M14 14.1 mm F2.0 IR
Fixed lens for selected Axis PTZ cameras
Lens M14 21.4 mm F2.0 IR
Fixed lens for selected Axis PTZ cameras
Lens M14 30.8 mm F2.4 IR
Fixed lens for selected Axis PTZ cameras
Lens M14 7.6 mm F2.0 IR
Lens 3.7 mm, F2.0
Horizontal field of view: 360°, 108.4° for each sensor
Vertical field of view: 84°
Minimum focus distance: 1.0 m (3.3 ft)
Autofocus, M14 mount, fixed iris
Dimensions
For the overall product dimensions, see the dimension
drawing in this datasheet.
Effective Projected Area (EPA): 0.047 m2 (0.5 ft2)
Weight4.0 kg (8.8 lb))
