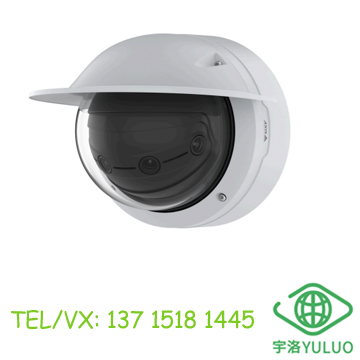

AXIS Q3839-PVE Panoramic Camera
Seamless 180° view, no blind spots, 29 MP
8K multisensor camera with one IP address
180° horizontal, 90° vertical coverage
AI-powered with support for advanced analytics
Horizon straightening and lossless zoom
Built-in cybersecurity with Axis Edge Vault
AXIS Q3839-PVE Panoramic Camera
Seamless 180° view, no blind spots, 29 MP
With 29 MP at 30 fps and seamless stitching of all four images, this AI-based camera delivers cohesive 180° panoramic
overviews for complete situational awareness. Lossless zoom lets you zoom in without degrading image sharpness. Plus,
remote pan/tilt/roll functionality ensures fast, cost-efficient installation. Built on a dual Axis system-on-chip, it includes
a deep learning processing unit to run advanced features and powerful analytics on the edge. For instance, AXIS Object
Analytics can detect, classify, track, and count humans and types of vehicles. Furthermore, Axis Edge Vault safeguards
the device and offers FIPS 140-2 Level 2 certified key storage and operations.
> 8K multisensor camera with one IP address
> 180° horizontal, 90° vertical coverage
> AI-powered with support for advanced analytics
> Horizon straightening and lossless zoom
> Built-in cybersecurity with Axis Edge Vault
Camera Image sensor
4 x 8.3 MP 1/1.8” progressive scan RGB CMOS
Pixel size 2.0 µm
Lens 4.6 mm, F1.8
Horizontal field of view: 180°
Vertical field of view: 90°
Fixed iris Day and night
Automatic IR-cut filter
Minimum illumination
Color: 0.1 lux at 50 IRE, F1.8
B/W: 0.03 lux at 50 IRE, F1.8
Shutter speed
1/8500 s to 1/5 s
Camera adjustment
Pan ±176°, tilt 30° to 88°, roll ±7°
Operating conditions
-40 °C to 50 °C (-40 °F to 122 °F)
Maximum temperature according to NEMA TS 2 (2.2.7):
74 °C (165 °F)
Installation temperature: -20 °C (-4 °F)5
Start-up temperature: -40 °C (-40 °F)6
Humidity 10–100% RH (condensing)
Storage conditions
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity 5–95% RH (non-condensing)
Dimensions
For the overall product dimensions, see the dimension
drawing in this datasheet.
Effective Projected Area (EPA): 0.038 m2 (0.12 ft2)

Weight 3320g

AXIS Q3839-PVE 02657-001
