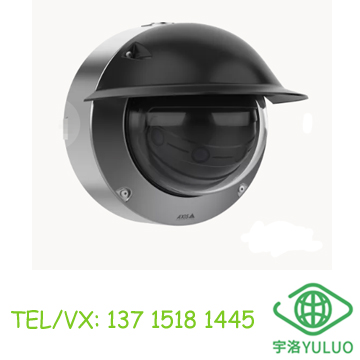

AXIS Q3839-SPVE Panoramic Camera
180° overview with stainless steel casing
Withstand corrosive and harsh conditions
8K multisensor camera with one IP address
AI-powered with support for advanced analytics
Horizon straightening and lossless zoom
Built-in cybersecurity with Axis Edge Vault
Enclosed in a marine-grade stainless steel casing, this AI-powered, multisensor camera is made for the toughest conditions. It delivers ultra-high 180° panoramic overviews with no blind spots for complete situational awareness.
Robust and secure in corrosive areas
AXIS Q3839-SPVE comes in a stainless steel (EN1.440 SS 316L) casing and can withstand the corrosive effects of seawater, making it ideal for wide area surveillance in marine environments such as on ships and in harbors. Plus, it can operate in temperatures from -50 °C to 55 °C (-58 ºF to 131 ºF). Easy to clean and maintain, and resistant to cleaning chemicals, it’s also certified by NSF/ANSI to Standard 169 (Special Purpose Food Equipment and Devices) for use in food processing facilities. What’s more, this robust camera comes with Axis Edge Vault, a hardware-based cybersecurity platform that safeguards the device and offers FIPS 140-2 Level 2 certified key storage and operations.
Ultra clear overview with no blind spots
Get the benefits of four cameras while paying for just one with this cost-effective device. It ensures fast, cost-efficient installation, and there’s a variety of mounting options available. It offers 180° horizontal coverage and 90° vertical coverage with no blind spots. And with up to 8K horizontal resolution at 30 fps and seamless stitching of all four images, you’ll enjoy smooth and cohesive 180° panoramic overviews. Thanks to lossless zoom, it’s possible to zoom in without degrading image sharpness. Edge-to-edge technology lets you easily add whatever connectivity devices you need. Furthermore, horizon straightening ensures visually balanced images.
AI-powered for valuable insights
Built on a dual Axis system-on-chip, this AI-powered camera includes a deep learning processing unit (DLPU) so you can run powerful features and analytics on the edge. For instance, AXIS Object Analytics can detect, classify, track, and count humans and types of vehicles. This DLPU also ensures improved processing and storage capabilities. Plus, it delivers valuable metadata facilitating fast, easy, and efficient forensic search capabilities in live or recorded video. Furthermore, when AXIS Q3839-SPVE is paired with an Axis radar device, you can take advantage of AXIS Radar Data Visualizer, a powerful application that adds value to and increases the functionality of Axis multisensor cameras.
echnical specifications
DATASHEET (PDF)
Variants: AXIS Q3839-SPVE
Camera
Property description Property value
Image sensor CMOS
Image sensor size 1/1.8"
Lightfinder Lightfinder 2.0
Wide dynamic range Forensic WDR
Min illumination/ light sensitivity (Color) 0.1 lux
Min illumination/ light sensitivity (B/W) 0.03 lux
Video
Property description Property value
Max video resolution 7552x3776
Max frames per second 30
Day and Night functionality Yes
Electronic image stabilization –
Lens
Property description Property value
Focal length 4.6 mm
Horizontal field of view 180 °
Vertical field of view 90 °
Compression
Property description Property value
Zipstream Yes
H.264 Baseline, High, Main
H.265 Yes
Audio
Property description Property value
Audio Support Yes
Security
Property description Property value
Signed OS Yes
Secure boot Yes
General
Property description Property value
Remote focus –
Remote zoom –
Built-in IR –
OptimizedIR –
Local storage (memory card slot) Yes
Operating temperature -40 to 50 °C
Outdoor Ready Yes
Vandal rating IK10
IP rating IP66, IP67, IP68, IP6K9K
Sustainability BFR/CFR free, PVC free
Analytics
Make your network camera solution more intelligent with powerful analytics and functionality.
Included
AXIS Object Analytics
Suite of AI-based analytics for actionable insights
AXIS Scene Metadata
Actionable insights through scene analysis
AXIS Video Motion Detection
Supported
AXIS Radar Data Visualizer
Visualize long-range 180° detection in all weather and lighting conditions
Housings & cabinets
AXIS TQ3817-E Weathershield
Designed for selected domes
Mounts
AXIS T91F67 Pole Mount
Made of marine grade-stainless steel
AXIS TQ3003-SE Wall Mount
Made of marine-grade stainless steel
AXIS TQ3105-SE Pendant Kit
For selected Axis dome cameras made of marine-grade stainless steel
AXIS Q3839-SPVE 03201-001
